Ontology-based Applications
Properties
Model Diagrams
Properties
| Element Type | Model Diagrams, Diagrams, Plans |
▣ Application Usage
A process for ontology-based applications is shown:
- The application ontology is edited using the PIG classes for ontologies. For example the terms (concepts) for library, book and author plus their relationships owned-by and written-by are defined.
- The application data is edited using the classes for application as generated from the application ontology. For example, libraries, books and authors are defined with their relationships.
- The application data is stored in a graph database, a so-called Triple-Store. For example, the users can query the data to list all libraries owning a given book or to list all authors found in a given library. The latter is a graph search which is particularly performant when graph databases are used.

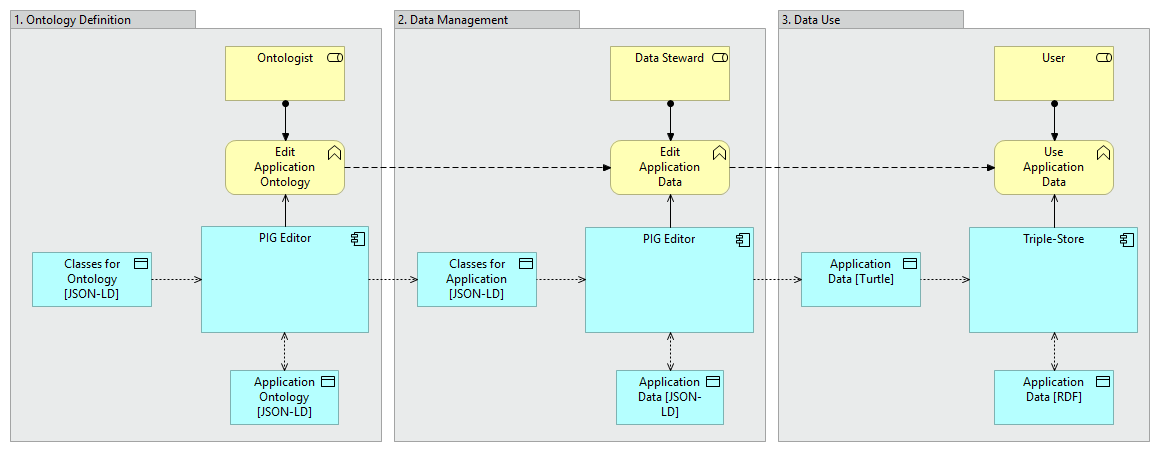

The process is shown using the ArchiMate notation. Business-related elements are yellow and IT-application-related elements are blue. The BPMN notation would show a lane per role Ontologist, Data Steward and User at the top and the business functions shown underneath as process steps within.
All data conforms to the Product Information Graph (PIG) metamodel, either in JSON-LD or Turtle format.
If you like, have a look at the demonstration:
| Step | Libraries (Example ) | Develop your own example |
|---|
| 1 | Editor with loaded classes for building an ontology and some terms. You can add terms of the library domain. | Editor with loaded classes for building an ontology. You can add terms of your application domain. |
| 2 | Library Ontology as HTML
Resulting Classes for Libraries to laod in the editor. | Export SpecIF Class Definitions (third option) to load in the next step. |
| 3 | Editor with loaded classes for managing application data and some instances. You can add data according to the library ontology defined above. | Editor ready to load classes for managing application data exported above. You can add data according to your application ontology. |
| 4 | Library Data as HTML
Resulting Library Data to load in the next step. | Export PIG (Turtle) to load in the next step. |
| 5 | Load to your favorite graph database, e.g. Apache Fuseki | Load to your favorite graph database, e.g. Apache Fuseki |
Please note: The demonstration uses the SpecIF tools until the PIG tools are available. If you like the approach, support our implementation team validating the CASCaDE standard in preparation!
Properties
| Element Type | Model Diagram |
| Notation | Application Usage |
Statements
Business
Properties
□ Ontologist
Responsible for defining the application ontology, i.e. the concepts and terms with their relationships within a given application domain, such as library management in this example or systems engineering in another.
Properties
| Element Type | ArchiMate:BusinessRole |
Statements
□ Edit Application Ontology
Edit (create and maintain) the application ontology.
Properties
| Element Type | ArchiMate:BusinessFunction |
Statements
□ Edit Application Data
Edit (create and maintain) the application data.
Properties
| Element Type | ArchiMate:BusinessFunction |
Statements
□ Data Steward
Responsible for defining the application data using the classes of the application ontology. In a different domain the Data Steward may be a Systems Engineer using a dedicated authoring tool.
Properties
| Element Type | ArchiMate:BusinessRole |
Statements
□ Use Application Data
Use (query and check) the application data.
Properties
| Element Type | ArchiMate:BusinessFunction |
Statements
□ User
Responsible for using (querying and even checking) the application data.
Properties
| Element Type | ArchiMate:BusinessRole |
Statements
Application
Properties
□ PIG Editor
A web application for creating, reading, updating and deleting data elements per class. The app is configured by the classes loaded at initialization time. The classes govern the choice and the dialog layout for modifying the data. Thus, the same software is used for more or less complex applications. In this case, the PIG Editor is used both for defining the application ontology and the application data.
